  Magnet Double Sensor
Magnet Double Sensor

General
The ALS-200D double sensor converts the end or middle positions of pneumatic actuators into electrical signals. It combines easy assembly with minimal components and is provided for pneumatic actuators. The flexible set system allows an adaptation to all sizes of actuators according to NAMUR.


Feature
- Compact design
- Easy and fast mounting
- According to NAMUR standard
- Both AC and DC current
- Moisture-Proof and Corrosion-Proof
- No sparks generating with electron circuit control
- Without easy-wearing working electric components



Specification

Temperature Range
-40˚C~85˚C
Sensor Type
Magent
Rared Operating Distance
1~6mm
Switching Element Function
NO (Optional NC)
Output Type
2-Wire
Switching Frequency
0~4.8KHz
Position Indicator
0~90˚
Working Voltage
5~240VAC/DC
Working Current
0~300mA
Rated Power
10W
Protection Degree
IP67

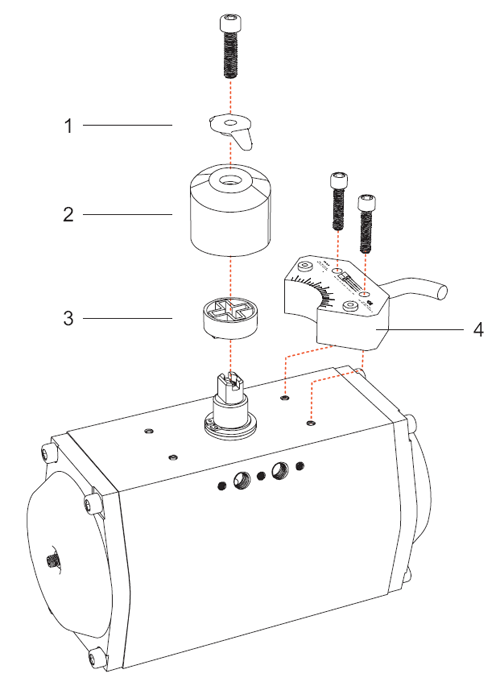

Structure




No.
Part Name
No.
Part Name
1
Pointer
3
Adaptor
(One for 30x80 H:20
Three for 30x130 H:20)
2
Magnetic Indicator
4
Double sensor

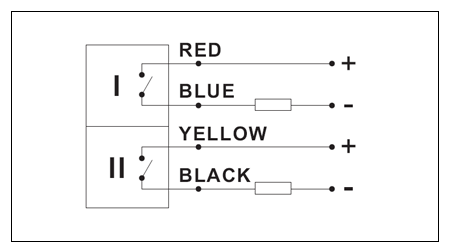

Wiring



Dimension
